发布订阅在 dapr 既是一个 component 又是一个 building block.

dapr 的 pubsub 构建块可以对外提供一个最少一次送达保证的发布订阅 API, 可以支持多种软件作为 message broker. 使用这个功能我们的服务就需要引入繁杂的 message broker sdk 和管理消息队列连接.

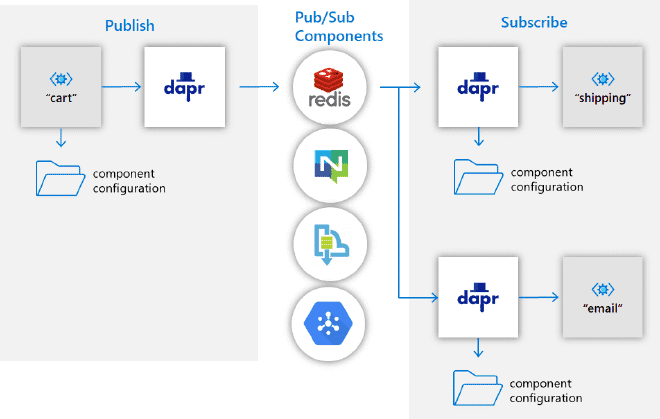

总览

overview

pubsub 功能分为发布和订阅两个部分:

  1. 用户可以通过调用 dapr sidecar API 发送消息到某个 topic
  2. 用户可以通过配置将 handler 绑定到某个 topic, 由 dapr sidecar 订阅 message broker 收到消息后交给用户 handler 处理

dapr 允许用户多个服务来订阅同一个 topic, 相当于 rabbitmq 中的 fanout 类型. 但是同一个服务多个实例则是会被放入一个 comsume group 中, 也就是一个消息只会有某个实例拿到.

默认情况下, dapr 会将用户消息包装成 CloudEvents 1.0 specification 格式, 并且会自动集成分布式追踪.

{
  "specversion": "1.0",
  "type": "xml.message",
  "source": "https://example.com/message",
  "subject": "Test XML Message",
  "id": "id-1234-5678-9101",
  "time": "2020-09-23T06:23:21Z",
  "datacontenttype": "text/xml",
  "data": "<note><to>User1</to><from>user2</from><message>hi</message></note>"
}

dapr 也允许通过配置来限制用户服务使用发布订阅 topic 的权限.

源码分析

首先 pubsub 作为一个 component, 我们查看它的 interface 声明:

// http://github.com/zcong1993/components-contrib/blob/ff9f357a77f74a9ebaa0032da71c1f571143a1ca/pubsub/pubsub.go#L11-L11
type PubSub interface {
  Init(metadata Metadata) error
  Features() []Feature
  Publish(req *PublishRequest) error
  Subscribe(req SubscribeRequest, handler Handler) error
  Close() error
}

// Handler is the handler used to invoke the app handler
type Handler func(ctx context.Context, msg *NewMessage) error
  1. Init 负责校验 component config 和初始化
  2. Features 用来声明实现者所提供的特性, 下文说明
  3. Publish 提供发布消息的能力
  4. Subscribe 提供订阅消息的能力
  5. Close 退出时关闭资源

dapr pubsub 只有一个 feature, 就是消息生存时间, 由于底层不同消息中间件能力不同, 所以需要使用 Features 方法告诉上层自己实现了哪些特性. dapr 很多模块都是使用这种方式控制特性.

Publish

上文说明了, dapr sidecar 提供发布消息的 API:

POST http://localhost:<daprPort>/v1.0/publish/<pubsubname>/<topic>[?<metadata>]
service Dapr {
  // Publishes events to the specific topic.
  rpc PublishEvent(PublishEventRequest) returns (google.protobuf.Empty) {}
}

以 HTTP API 为例, 找到对应路由 handler:


// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/http/api.go#L238-L238
func (a *api) constructPubSubEndpoints() []Endpoint {
  return []Endpoint{
    {
      Methods: []string{fasthttp.MethodPost, fasthttp.MethodPut},
      Route:   "publish/{pubsubname}/{topic:*}",
      Version: apiVersionV1,
      Handler: a.onPublish,
    },
  }
}

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/http/api.go#L1306-L1306
// 省略掉错误校验
func (a *api) onPublish(reqCtx *fasthttp.RequestCtx) {
  pubsubName := reqCtx.UserValue(pubsubnameparam).(string)
  thepubsub := a.pubsubAdapter.GetPubSub(pubsubName)
  topic := reqCtx.UserValue(topicParam).(string)

  body := reqCtx.PostBody()
  contentType := string(reqCtx.Request.Header.Peek("Content-Type"))
  metadata := getMetadataFromRequest(reqCtx)
  rawPayload, metaErr := contrib_metadata.IsRawPayload(metadata)

  // Extract trace context from context.
  span := diag_utils.SpanFromContext(reqCtx)
  // Populate W3C traceparent to cloudevent envelope
  corID := diag.SpanContextToW3CString(span.SpanContext())

  data := body

  if !rawPayload {
    envelope, err := runtime_pubsub.NewCloudEvent(&runtime_pubsub.CloudEvent{
      ID:              a.id,
      Topic:           topic,
      DataContentType: contentType,
      Data:            body,
      TraceID:         corID,
      Pubsub:          pubsubName,
    })

    features := thepubsub.Features()

    pubsub.ApplyMetadata(envelope, features, metadata)

    data, err = a.json.Marshal(envelope)
    if err != nil {
      return
    }
  }

  req := pubsub.PublishRequest{
    PubsubName: pubsubName,
    Topic:      topic,
    Data:       data,
    Metadata:   metadata,
  }

  err := a.pubsubAdapter.Publish(&req)
  if err != nil {
    status := fasthttp.StatusInternalServerError
    respond(reqCtx, withError(status, msg))
    log.Debug(msg)
  } else {
    respond(reqCtx, withEmpty())
  }
}

上面的代码做的事情很简单, 校验参数, 拿到 pubsub name 和 topic 这些信息, 并且在用户不指定 raw 格式的时候将消息包装为 CloudEvent 格式, 最后调用 pubsubAdapter.Publish 方法处理消息.

pubsubAdapter 这个 interface 就是 runtime 来实现的, 所以 pubsubAdapter.Publish 其实就是 runtime.Publish 方法.

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/runtime/runtime.go#L1243-L1243
func (a *DaprRuntime) Publish(req *pubsub.PublishRequest) error {
  thepubsub := a.GetPubSub(req.PubsubName)
  if thepubsub == nil {
    return runtime_pubsub.NotFoundError{PubsubName: req.PubsubName}
  }

  if allowed := a.isPubSubOperationAllowed(req.PubsubName, req.Topic, a.scopedPublishings[req.PubsubName]); !allowed {
    return runtime_pubsub.NotAllowedError{Topic: req.Topic, ID: a.runtimeConfig.ID}
  }

  return a.pubSubs[req.PubsubName].Publish(req)
}

// GetPubSub is an adapter method to find a pubsub by name.
func (a *DaprRuntime) GetPubSub(pubsubName string) pubsub.PubSub {
  return a.pubSubs[pubsubName]
}

可以看到它做了三件事:

  1. 根据参数 pubsubName 拿到对应的 pubsub component 实例, a.pubSubs 就是之前组件介绍文章中组件加载完成保存的 map
  2. 校验是否有发布消息的权限
  3. 调用第一步拿到的 pubsub component Publish 方法发布消息到消息中间件

Subscribe

订阅相比于发布实现会难很多.

runtime.initRuntime 方法中可以找到 subscribe 初始化入口为 runtime.startSubscribing:

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/runtime/runtime.go#L2093-L2093
func (a *DaprRuntime) startSubscribing() {
  for name, pubsub := range a.pubSubs {
    if err := a.beginPubSub(name, pubsub); err != nil {
      log.Errorf("error occurred while beginning pubsub %s: %s", name, err)
    }
  }
}

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/runtime/runtime.go#L463-L463
func (a *DaprRuntime) beginPubSub(name string, ps pubsub.PubSub) error {
  var publishFunc func(ctx context.Context, msg *pubsubSubscribedMessage) error
  switch a.runtimeConfig.ApplicationProtocol {
  case HTTPProtocol:
    publishFunc = a.publishMessageHTTP
  case GRPCProtocol:
    publishFunc = a.publishMessageGRPC
  }
  topicRoutes, err := a.getTopicRoutes()
  if err != nil {
    return err
  }
  v, ok := topicRoutes[name]
  if !ok {
    return nil
  }
  for topic, route := range v.routes {
    allowed := a.isPubSubOperationAllowed(name, topic, a.scopedSubscriptions[name])
    if !allowed {
      log.Warnf("subscription to topic %s on pubsub %s is not allowed", topic, name)
      continue
    }

    routeMetadata := route.metadata
    if err := ps.Subscribe(pubsub.SubscribeRequest{
      Topic:    topic,
      Metadata: route.metadata,
    }, func(ctx context.Context, msg *pubsub.NewMessage) error {
      if msg.Metadata == nil {
        msg.Metadata = make(map[string]string, 1)
      }

      msg.Metadata[pubsubName] = name

      rawPayload, err := contrib_metadata.IsRawPayload(routeMetadata)
      if err != nil {
        log.Errorf("error deserializing pubsub metadata: %s", err)
        return err
      }

      var cloudEvent map[string]interface{}
      data := msg.Data
      if rawPayload {
        cloudEvent = pubsub.FromRawPayload(msg.Data, msg.Topic, name)
        data, err = a.json.Marshal(cloudEvent)
        if err != nil {
          log.Errorf("error serializing cloud event in pubsub %s and topic %s: %s", name, msg.Topic, err)
          return err
        }
      } else {
        err = a.json.Unmarshal(msg.Data, &cloudEvent)
        if err != nil {
          log.Errorf("error deserializing cloud event in pubsub %s and topic %s: %s", name, msg.Topic, err)
          return err
        }
      }

      if pubsub.HasExpired(cloudEvent) {
        log.Warnf("dropping expired pub/sub event %v as of %v", cloudEvent[pubsub.IDField], cloudEvent[pubsub.ExpirationField])

        return nil
      }

      route := a.topicRoutes[msg.Metadata[pubsubName]].routes[msg.Topic]
      routePath, shouldProcess, err := findMatchingRoute(&route, cloudEvent, a.featureRoutingEnabled)
      if err != nil {
        return err
      }
      if !shouldProcess {
        // The event does not match any route specified so ignore it.
        log.Debugf("no matching route for event %v in pubsub %s and topic %s; skipping", cloudEvent[pubsub.IDField], name, msg.Topic)
        return nil
      }

      return publishFunc(ctx, &pubsubSubscribedMessage{
        cloudEvent: cloudEvent,
        data:       data,
        topic:      msg.Topic,
        metadata:   msg.Metadata,
        path:       routePath,
      })
    }); err != nil {
      log.Errorf("failed to subscribe to topic %s: %s", topic, err)
    }
  }

  return nil
}
  1. 根据 getTopicRoutes 方法拿到服务订阅配置, 下文说明
  2. 将拿到的所有 topic, 调用 pubsub component 的 Subscribe 订阅
  3. subscribe handler 拿到订阅消息时, 将未过期的消息交给 publishFunc 处理

接着分析 getTopicRoutes 方法:

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/runtime/runtime.go#L1138-L1138
func (a *DaprRuntime) getTopicRoutes() (map[string]TopicRoute, error) {
  if a.topicRoutes != nil {
    return a.topicRoutes, nil
  }

  topicRoutes := make(map[string]TopicRoute)

  if a.appChannel == nil {
    log.Warn("app channel not initialized, make sure -app-port is specified if pubsub subscription is required")
    return topicRoutes, nil
  }

  var subscriptions []runtime_pubsub.Subscription
  var err error

  // handle app subscriptions
  if a.runtimeConfig.ApplicationProtocol == HTTPProtocol {
    subscriptions, err = runtime_pubsub.GetSubscriptionsHTTP(a.appChannel, log)
  } else if a.runtimeConfig.ApplicationProtocol == GRPCProtocol {
    client := runtimev1pb.NewAppCallbackClient(a.grpc.AppClient)
    subscriptions, err = runtime_pubsub.GetSubscriptionsGRPC(client, log)
  }
  if err != nil {
    return nil, err
  }

  // handle declarative subscriptions
  ds := a.getDeclarativeSubscriptions()
  for _, s := range ds {
    skip := false

    // don't register duplicate subscriptions
    for _, sub := range subscriptions {
      if sub.PubsubName == s.PubsubName && sub.Topic == s.Topic {
        log.Warnf("two identical subscriptions found (sources: declarative, app endpoint). pubsubname: %s, topic: %s",
          s.PubsubName, s.Topic)
        skip = true
        break
      }
    }

    if !skip {
      subscriptions = append(subscriptions, s)
    }
  }

  for _, s := range subscriptions {
    if _, ok := topicRoutes[s.PubsubName]; !ok {
      topicRoutes[s.PubsubName] = TopicRoute{routes: make(map[string]Route)}
    }

    topicRoutes[s.PubsubName].routes[s.Topic] = Route{metadata: s.Metadata, rules: s.Rules}
  }

  if len(topicRoutes) > 0 {
    for pubsubName, v := range topicRoutes {
      topics := []string{}
      for topic := range v.routes {
        topics = append(topics, topic)
      }
      log.Infof("app is subscribed to the following topics: %v through pubsub=%s", topics, pubsubName)
    }
  }
  a.topicRoutes = topicRoutes
  return topicRoutes, nil
}

可以看到此函数会分别通过声明式函数式两种方式拿到订阅配置并合并.

声明式是指使用 Subscription CRD 文件的形式定义配置, 而函数式是指用户通过路由 /dapr/subscribe 或者 grpc ListTopicSubscriptions handler 暴露给 dapr sidecar 的配置.

topicRoutes 则是 dapr 的新特性 Pub/Sub routing 允许我们定义规则来使得同一个 topic 下可以为不同 event.type 消息绑定不同 handler. 本文不做过多介绍.

回到上面 beginPubSub 中最后调用的 publishFunc 函数.

开头总览部分可以看到 subscribe 的流程是, dapr sidecar 订阅消息中间件, 拿到消息之后将消息交给用户指定的 handler. 这个 publishFunc 做的就是将消息交给 handler.

本质其实就是使用了 runtime.appChannel 来调用绑定的 app 路由或者 grpc handler, 所以根据用户的 app 类型来选择调用 publishMessageHTTPpublishMessageGRPC.

// http://github.com/zcong1993/dapr-1/blob/a8ee30180e1183e2a2e4d00c283448af6d73d0d0/pkg/runtime/runtime.go#L1344-L1344
func (a *DaprRuntime) publishMessageHTTP(ctx context.Context, msg *pubsubSubscribedMessage) error {
  cloudEvent := msg.cloudEvent

  var span *trace.Span

  req := invokev1.NewInvokeMethodRequest(msg.path)
  req.WithHTTPExtension(nethttp.MethodPost, "")
  req.WithRawData(msg.data, contenttype.CloudEventContentType)

  if cloudEvent[pubsub.TraceIDField] != nil {
    traceID := cloudEvent[pubsub.TraceIDField].(string)
    sc, _ := diag.SpanContextFromW3CString(traceID)
    spanName := fmt.Sprintf("pubsub/%s", msg.topic)
    ctx, span = diag.StartInternalCallbackSpan(ctx, spanName, sc, a.globalConfig.Spec.TracingSpec)
  }

  resp, err := a.appChannel.InvokeMethod(ctx, req)
  if err != nil {
    return errors.Wrap(err, "error from app channel while sending pub/sub event to app")
  }

  statusCode := int(resp.Status().Code)

  if span != nil {
    m := diag.ConstructSubscriptionSpanAttributes(msg.topic)
    diag.AddAttributesToSpan(span, m)
    diag.UpdateSpanStatusFromHTTPStatus(span, statusCode)
    span.End()
  }

  _, body := resp.RawData()

  if (statusCode >= 200) && (statusCode <= 299) {
    // Any 2xx is considered a success.
    var appResponse pubsub.AppResponse
    err := a.json.Unmarshal(body, &appResponse)
    if err != nil {
      log.Debugf("skipping status check due to error parsing result from pub/sub event %v", cloudEvent[pubsub.IDField])
      // Return no error so message does not get reprocessed.
      return nil // nolint:nilerr
    }

    switch appResponse.Status {
    case "":
      // Consider empty status field as success
      fallthrough
    case pubsub.Success:
      return nil
    case pubsub.Retry:
      return errors.Errorf("RETRY status returned from app while processing pub/sub event %v", cloudEvent[pubsub.IDField])
    case pubsub.Drop:
      log.Warnf("DROP status returned from app while processing pub/sub event %v", cloudEvent[pubsub.IDField])
      return nil
    }
    // Consider unknown status field as error and retry
    return errors.Errorf("unknown status returned from app while processing pub/sub event %v: %v", cloudEvent[pubsub.IDField], appResponse.Status)
  }

  if statusCode == nethttp.StatusNotFound {
    // These are errors that are not retriable, for now it is just 404 but more status codes can be added.
    // When adding/removing an error here, check if that is also applicable to GRPC since there is a mapping between HTTP and GRPC errors:
    // https://cloud.google.com/apis/design/errors#handling_errors
    log.Errorf("non-retriable error returned from app while processing pub/sub event %v: %s. status code returned: %v", cloudEvent[pubsub.IDField], body, statusCode)
    return nil
  }

  // Every error from now on is a retriable error.
  log.Warnf("retriable error returned from app while processing pub/sub event %v: %s. status code returned: %v", cloudEvent[pubsub.IDField], body, statusCode)
  return errors.Errorf("retriable error returned from app while processing pub/sub event %v: %s. status code returned: %v", cloudEvent[pubsub.IDField], body, statusCode)
}
  1. 将消息和用户绑定的路由转化成 appChannel.InvokeMethod 的请求参数, 并调用用户接口
  2. 根据用户接口响应, 控制此函数 error 返回进而控制重试

publishMessageGRPC 也是同理, 只是消息格式不同.

其他

重试处理

dapr 订阅功能可以根据我们绑定 handler 的响应来判断消息是否消费成功, 没成功的消息会尝试重试操作.

对于能够自己处理重试的消息中间件, 例如 rabbitmq 的 nack 操作, dapr 会使用中间件自身的重试机制, 而自身不支持时, 会采用 backoffRetry 的方式处理重试.

// http://github.com/zcong1993/components-contrib/blob/ff9f357a77f74a9ebaa0032da71c1f571143a1ca/pubsub/kafka/kafka.go#L78-L78
if err := retry.NotifyRecover(func() error {
  consumer.k.logger.Debugf("Processing Kafka message: %s/%d/%d [key=%s]", message.Topic, message.Partition, message.Offset, asBase64String(message.Key))
  err := consumer.callback(session.Context(), &msg)
  if err == nil {
    session.MarkMessage(message, "")
  }

  return err
}, b, func(err error, d time.Duration) {
  consumer.k.logger.Errorf("Error processing Kafka message: %s/%d/%d [key=%s]. Retrying...", message.Topic, message.Partition, message.Offset, asBase64String(message.Key))
}, func() {
  consumer.k.logger.Infof("Successfully processed Kafka message after it previously failed: %s/%d/%d [key=%s]", message.Topic, message.Partition, message.Offset, asBase64String(message.Key))
}); err != nil {
  return err
}

参考资料

wxmp
